Rebelcell Baterie Li-ion 24V/50Ah
Descriere

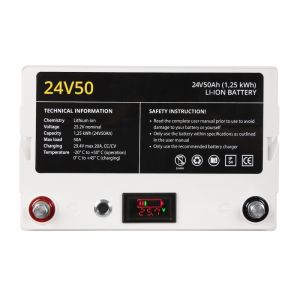

Rebelcell Baterie Li-ion 24V/50Ah
Complete package with 24V50 Angling li-on battery and matching 12A li-ion battery charger. Standard with digital charge status indicator. Replaces in practice two lead batteries to 12V105Ah.
Application: specially developed for predatory fish boats with 24V electric motor up to 80 Lbs.
Sailing time: depends on the loading of the boat, weather conditions, wave action and use of electric motor: the battery replaces lead-time battery pack up to 2 x 12V105Ah (indicative sailing time: 6-9 hours / 1 full fishing day).
Most important features:
- Compact and lightweight: battery weighs only 9.5 kg and replaces lead battery pack of 55 kg. Weight saving up to 45kg possible!
- Top performance: high and constant thrust until the battery is empty for precise vertical operations. Up to 100% discharge without detriment to performance (ie lead battery that can be discharged by up to 70%!)
- High ease of use: lightweight and compact, fast and intermediate charging (within 4-5 hours full), digital charge status indicator
- Reliable and long life : built-in abuse protection (against overloading, overvoltage, high temperature etc.) by BMS and lifespan up to 10 fishing seasons
- 2 year warranty
PAY ATTENTION! READ THE FOLLOWING INFORMATION BEFORE PURCHASING THE PRODUCT:
- Only use with 24V electric motors. Place a suitable fuse between the battery and electric motor to protect both. Use cables of sufficient thickness and (ANEN) plug connections to connect your electric motor to the battery for safe use.
- Never use crocodile clips to connect your electric motor to the battery! These connections are not safe and can lead to a large heat development with dangerous situations and damage to your electric motor and battery. Damage caused by incorrect connections and wiring is expressly excluded from warranty.
- The battery is splash-proof according to the IP54 standard. To prevent problems, use a battery box and place the battery upright on an elevation to prevent the battery from being in the water or water from the top of the battery. Water damage due to improper use is expressly excluded from warranty.
| Technical specifications | 24V50 Angling |
|---|---|
| Chemistry | Lithium ion |
| Voltage | 25.2V |
| Capacity (C1-C20) | 50Ah |
| EqPb (comparable lead battery) | up to 2x 12V105Ah |
| Nominal energy | 1.25 kWh |
| Maximum continuous discharge | 50 A |
| Peak discharge (10 sec) | 75 A |
| Lifetime (#loads) (@ 80% DoD) | ~ 1500 |
| Lifetime (#loads) (@ 100% DoD) | ~ 1000 |
| Size | 259x167x212mm |
| Weight | ~ 9.5 kG |
| Energy density | ~ 104 Wh / kG |
| Electronics & BMS | |
| Bandwidth voltage | 21.0V ~ 29.4V |
| Charge temperature | 0 ~ 45 ° C |
| Discharge temperature | -20 ~ 60 ° C |
| Save temperature | 0 ~ 45 ° C |
| Maximum charging current | 20A |
| Charge status indicator | yes, digitally |
| Integrated cell balancing | Yes |
| Temperature protection | Yes |
| Maximum discharge current protection | Yes |
| Overvoltage protection | Yes |
| Undervoltage protection | Yes |
| Protection & certification | |
| Security class (IEC 529) | IP54 |
| CE certificate | Yes |
| Guarantee | 2 years |
| USB output | yes, 2x |
Cod
Marime
Culoare
Bucati
Greutate
Pret recomandat
RB24V50A
295x167x212mm
Gri
1bucata
9.5Kg
4995.00 lei
Cod: RB24V50A
Marime: 295x167x212mm
Culoare: Gri
Bucati: 1bucata
Greutate: 9.5Kg
Pret recomandat: 4995.00 lei
Marime: 295x167x212mm
Culoare: Gri
Bucati: 1bucata
Greutate: 9.5Kg
Pret recomandat: 4995.00 lei
